ND-A series DTH hammer without foot valve
Share the required size, equipment and drilling conditions with your enquiry.
Product appearance and specifications are confirmed with your quotation.
Technical reference
Original manufacturer reference. Confirm the selected model and configuration before ordering.

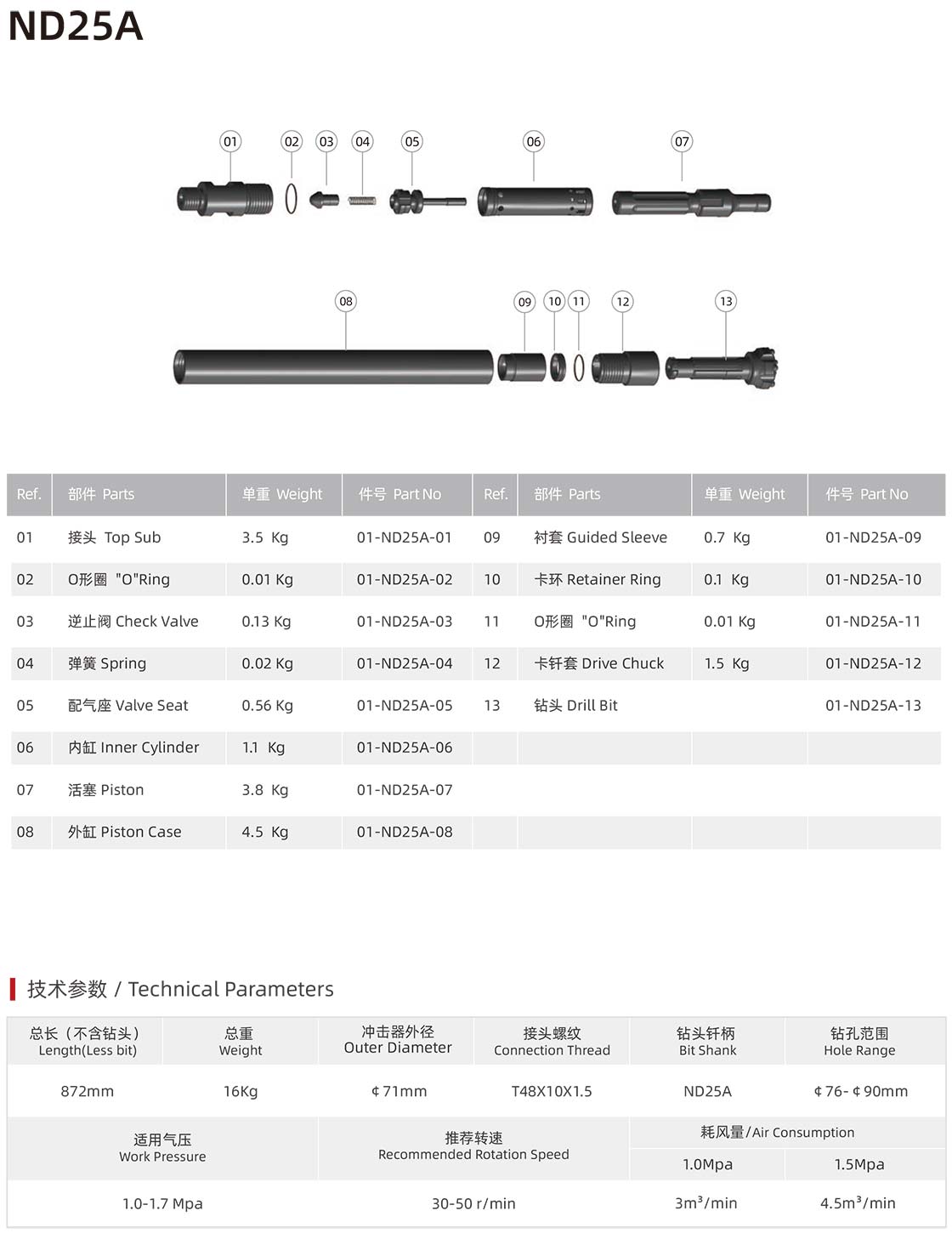

ND25A exploded view
ND25A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 3.5Kg | 01-ND25A-01 |
| 02 | OO"Ring | 0.01Kg | 01-ND25A-02 |
| 03 | Check Valve | 0.13Kg | 01-ND25A-03 |
| 04 | Spring | 0.02Kg | 01-ND25A-04 |
| 05 | Valve Seat | 0.56Kg | 01-ND25A-05 |
| 06 | Inner Cylinder | 1.1Kg | 01-ND25A-06 |
| 07 | Piston | 3.8Kg | 01-ND25A-07 |
| 08 | Piston Case | 4.5Kg | 01-ND25A-08 |
| 09 | Guided Sleeve | 0.7Kg | 01-ND25A-09 |
| 10 | Retainer Ring | 0.1Kg | 01-ND25A-10 |
| 11 | O-Ring | 0.01Kg | 01-ND25A-11 |
| 12 | Drive Chuck | 1.5Kg | 01-ND25A-12 |
| 13 | Drill Bit | — | 01-ND25A-13 |
ND25A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 872mm |
| Weight | 16Kg |
| Outer Diameter | 71mm |
| Connection Thread | T48X10X1.5 |
| Bit Shank | ND25A |
| Hole Range | 476-90mm |
| Work Pressure | 1.0-1.7Mpa |
| Recommended Rotation Speed | 30-50r/min |
| Air Consumption | 1.0Mpa / 1.5Mpa / 4.5m/min / 3m/min |

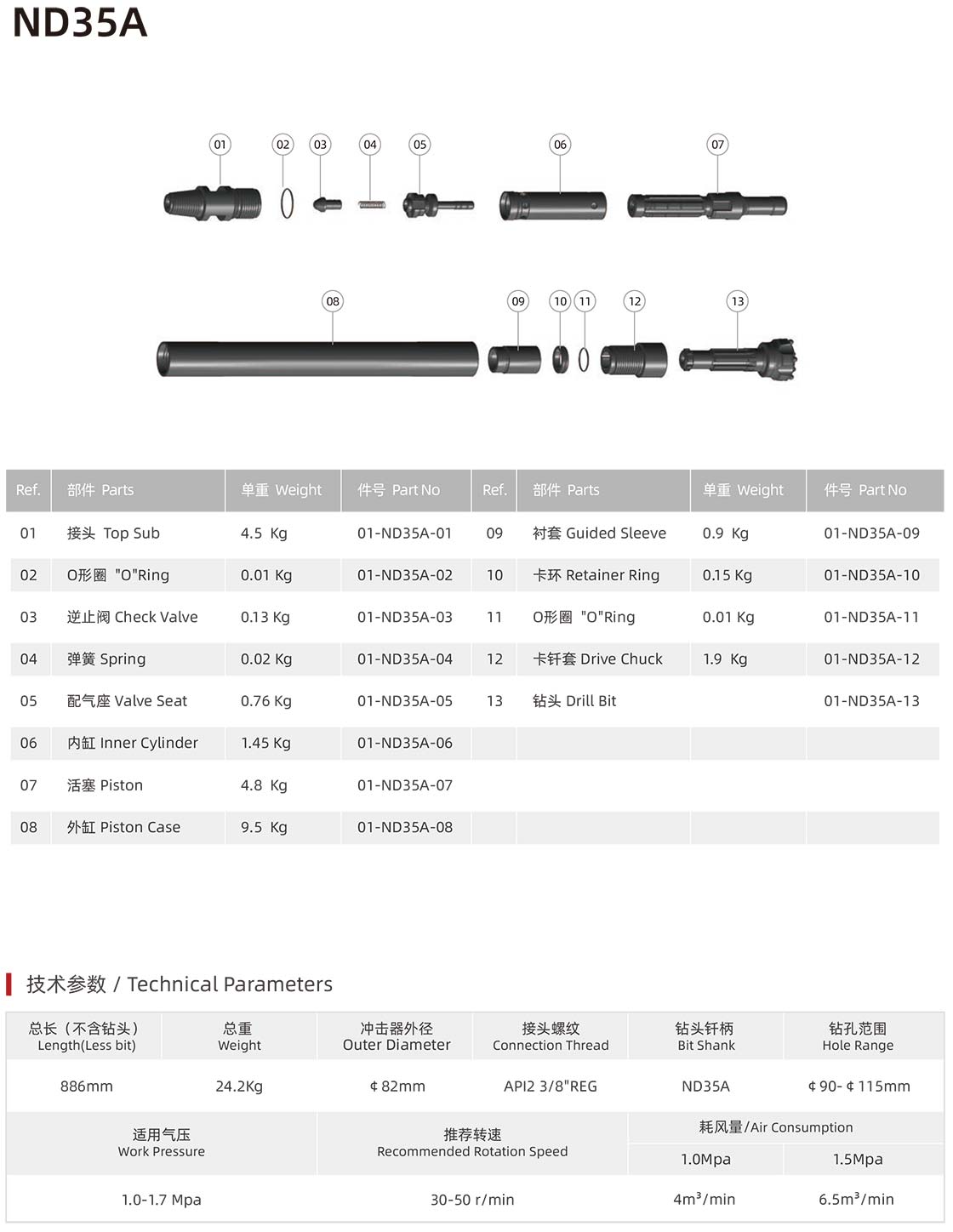

ND35A exploded view
ND35A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 4.5Kg | 01-ND35A-01 |
| 02 | OO"Ring | 0.01Kg | 01-ND35A-02 |
| 03 | Check Valve | 0.13Kg | 01-ND35A-03 |
| 04 | Spring | 0.02Kg | 01-ND35A-04 |
| 05 | Valve Seat | 0.76Kg | 01-ND35A-05 |
| 06 | Inner Cylinder | 1.45Kg | 01-ND35A-06 |
| 07 | Piston | 4.8Kg | 01-ND35A-07 |
| 08 | Piston Case | 9.5Kg | 01-ND35A-08 |
| 09 | Guided Sleeve | 0.9Kg | 01-ND35A-09 |
| 10 | Retainer Ring | 0.15Kg | 01-ND35A-10 |
| 11 | OO"Ring | 0.01Kg | 01-ND35A-11 |
| 12 | Drive Chuck | 1.9Kg | 01-ND35A-12 |
| 13 | Drill Bit | — | 01-ND35A-13 |
ND35A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 886mm |
| Weight | 24.2Kg |
| Outer Diameter | 82mm |
| Connection Thread | API23/8"REG |
| Bit Shank | ND35A |
| Hole Range | 90-115mm |
| Work Pressure | 1.0-1.7Mpa |
| Recommended Rotation Speed | 30-50r/min |
| Air Consumption | 1.0Mpa / 1.5Mpa / 4m/min / 6.5m/min |

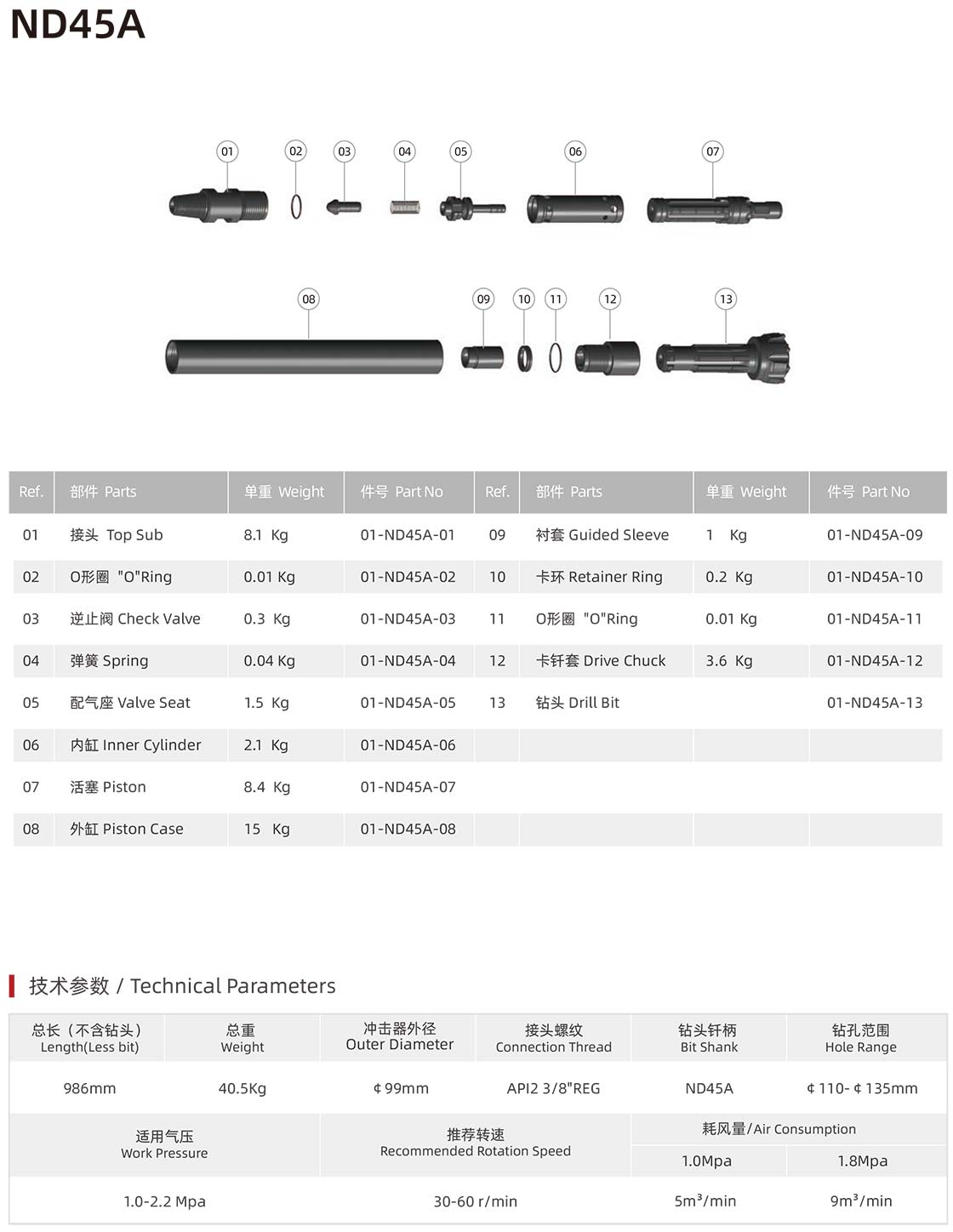

ND45A exploded view
ND45A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 8.1Kg | 01-ND45A-01 |
| 02 | OO"Ring | 0.01Kg | 01-ND45A-02 |
| 03 | Check Valve | Kg 0.3 | 01-ND45A-03 |
| 04 | Spring | 0.04Kg | 01-ND45A-04 |
| 05 | Valve Seat | 1.5Kg | 01-ND45A-05 |
| 06 | Inner Cylinder | 2.1Kg | 01-ND45A-06 |
| 07 | Piston | 8.4Kg | 01-ND45A-07 |
| 08 | Piston Case | 15Kg | 01-ND45A-08 |
| 09 | Guided Sleeve | 1 Kg | 01-ND45A-09 |
| 10 | Retainer Ring | 0.2Kg | 01-ND45A-10 |
| 11 | O-Ring | 0.01Kg | 01-ND45A-11 |
| 12 | Drive Chuck | 3.6Kg | 01-ND45A-12 |
| 13 | Drill Bit | — | 01-ND45A-13 |
ND45A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 986mm |
| Weight | 40.5Kg |
| Outer Diameter | 99mm |
| Connection Thread | API23/8"REG |
| Bit Shank | ND45A |
| Hole Range | 4110-135mm |
| Work Pressure | 1.0-2.2Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.8Mpa / 5m3/min / 9m/min |

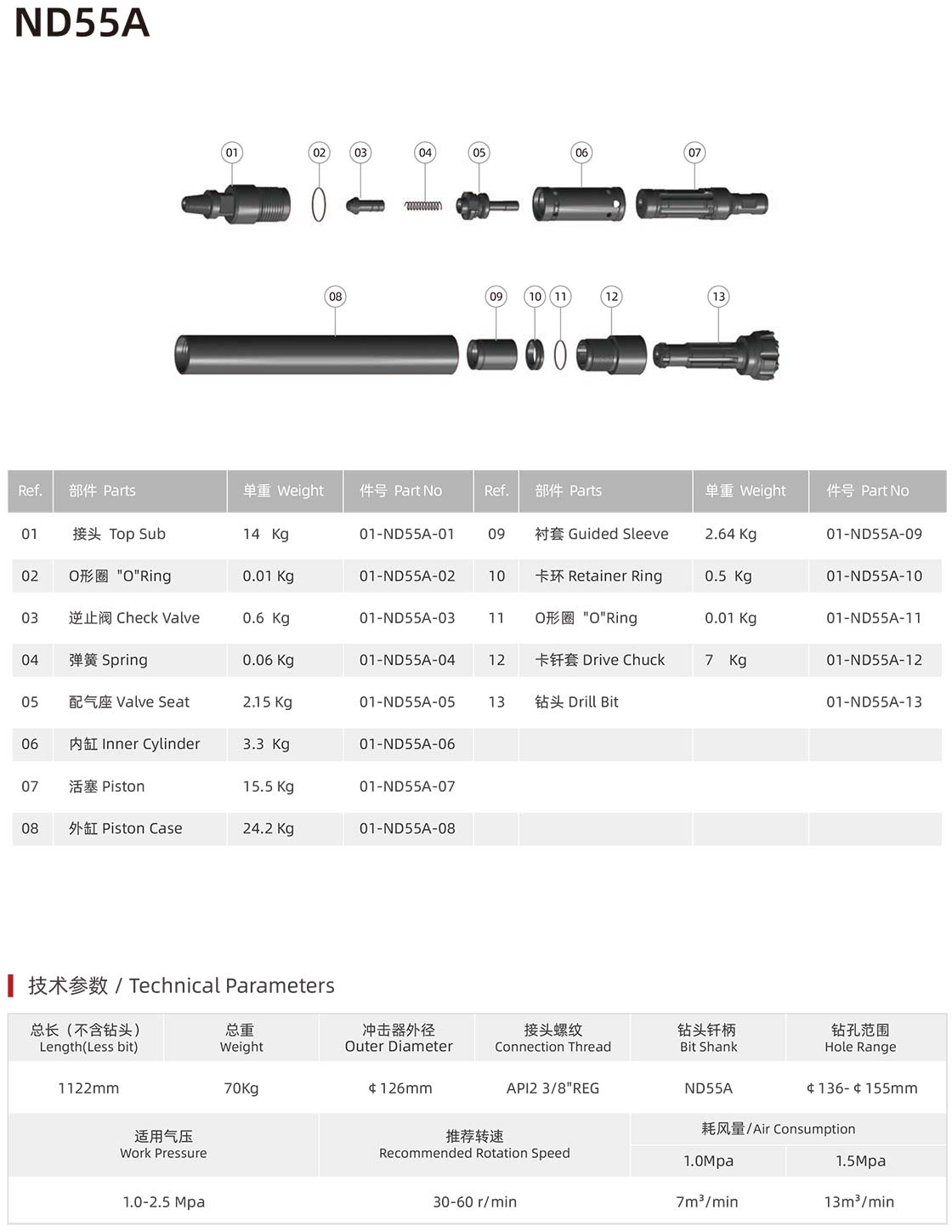

ND55A exploded view
ND55A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 14Kg | 01-ND55A-01 |
| 02 | OO"Ring | 0.01Kg | 01-ND55A-02 |
| 03 | Check Valve | 0.6Kg | 01-ND55A-03 |
| 04 | Spring | 0.06Kg | 01-ND55A-04 |
| 05 | Valve Seat | 2.15Kg | 01-ND55A-05 |
| 06 | Inner Cylinder | 3.3Kg | 01-ND55A-06 |
| 07 | Piston | 15.5Kg | 01-ND55A-07 |
| 08 | Piston Case | 24.2Kg | 01-ND55A-08 |
| 09 | Guided Sleeve | 2.64Kg | 01-ND55A-09 |
| 10 | Retainer Ring | 0.5Kg | 01-ND55A-10 |
| 11 | O-Ring | 0.01Kg | 01-ND55A-11 |
| 12 | Drive Chuck | 7 Kg | 01-ND55A-12 |
| 13 | Drill Bit | — | 01-ND55A-13 |
ND55A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1122mm |
| Weight | 70Kg |
| Outer Diameter | 126mm |
| Connection Thread | AP123/8"REG |
| Bit Shank | ND55A |
| Hole Range | 136-155mm |
| Work Pressure | 1.0-2.5Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.5Mpa / 13m3/min / 7m/min |

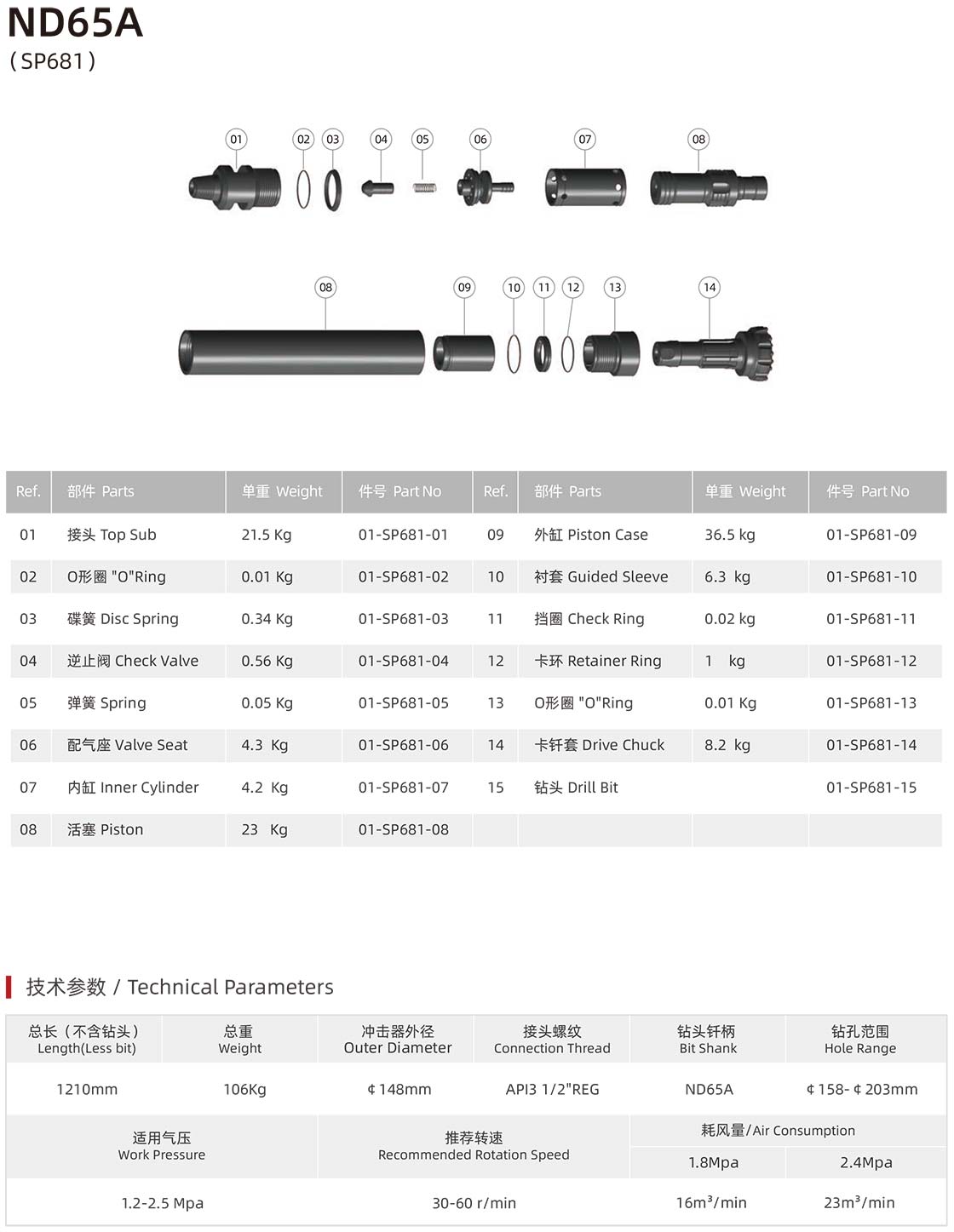

ND65A exploded view
ND65A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 21.5Kg | 01-SP681-01 |
| 02 | OORing | 0.01Kg | 01-SP681-02 |
| 03 | Disc Spring | 0.34Kg | 01-SP681-03 |
| 04 | Check Valve | 0.56Kg | 01-SP681-04 |
| 05 | Spring | 0.05Kg | 01-SP681-05 |
| 06 | Valve Seat | 4.3Kg | 01-SP681-06 |
| 07 | Inner Cylinder | 4.2Kg | 01-SP681-07 |
| 08 | Piston | 23Kg | 01-SP681-08 |
| 09 | Piston Case | 36.5kg | 01-SP681-09 |
| 10 | Guided Sleeve | 6.3kg | 01-SP681-10 |
| 11 | Check Ring | 0.02kg | 01-SP681-11 |
| 12 | Retainer Ring | 1 kg | 01-SP681-12 |
| 13 | O-Ring | 0.01Kg | 01-SP681-13 |
| 14 | Drive Chuck | 8.2kg | 01-SP681-14 |
| 15 | Drill Bit | — | 01-SP681-15 |
ND65A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1210mm |
| Weight | 106Kg |
| Outer Diameter | 148mm |
| Connection Thread | API31/2"REG |
| Bit Shank | ND65A |
| Hole Range | 158-203mm |
| Work Pressure | 1.2-2.5Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.8Mpa / 2.4Mpa / 16m/min / 23m/min |

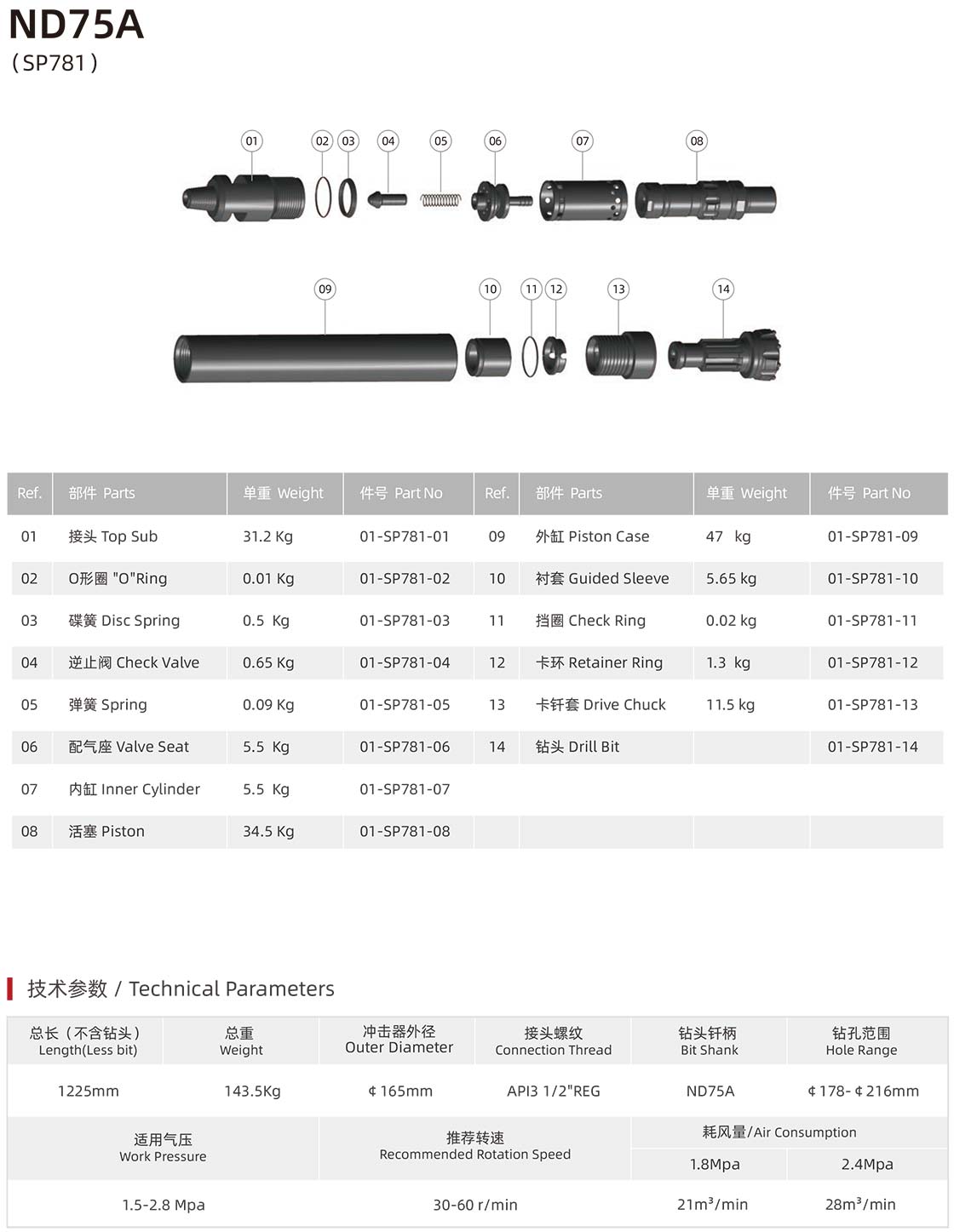

ND75A exploded view
ND75A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 31.2Kg | 01-SP781-01 |
| 02 | OO"Ring | 0.01Kg | 01-SP781-02 |
| 03 | Disc Spring | 0.5Kg | 01-SP781-03 |
| 04 | Check Valve | 0.65Kg | 01-SP781-04 |
| 05 | Spring | 0.09Kg | 01-SP781-05 |
| 06 | Valve Seat | 5.5Kg | 01-SP781-06 |
| 07 | Inner Cylinder | 5.5Kg | 01-SP781-07 |
| 08 | Piston | 34.5Kg | 01-SP781-08 |
| 09 | Piston Case | 47kg | 01-SP781-09 |
| 10 | Guided Sleeve | 5.65kg | 01-SP781-10 |
| 11 | Check Ring | 0.02kg | 01-SP781-11 |
| 12 | Retainer Ring | 1.3kg | 01-SP781-12 |
| 13 | Drive Chuck | 11.5kg | 01-SP781-13 |
| 14 | Drill Bit | — | 01-SP781-14 |
ND75A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1225mm |
| Weight | 143.5Kg |
| Outer Diameter | 165mm |
| Connection Thread | API31/2"REG |
| Bit Shank | ND75A |
| Hole Range | 178-216mm |
| Work Pressure | 1.5-2.8Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.8Mpa / 2.4Mpa / 21m/min / 28m3/min |

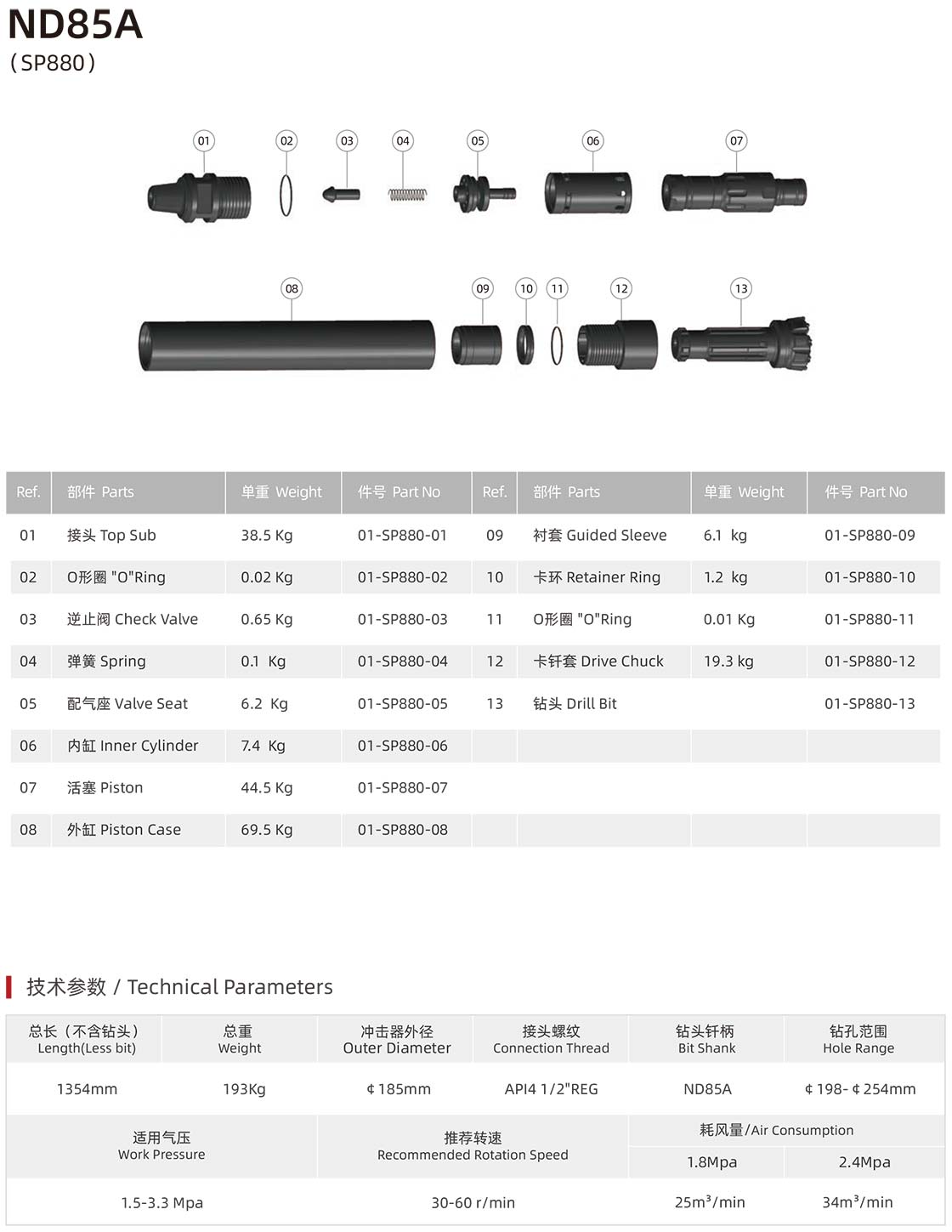

ND85A exploded view
ND85A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 38.5Kg | 01-SP880-01 |
| 02 | 0O"Ring | 0.02Kg | 01-SP880-02 |
| 03 | Check Valve | 0.65Kg | 01-SP880-03 |
| 04 | Spring | 0.1Kg | 01-SP880-04 |
| 05 | Valve Seat | 6.2Kg | 01-SP880-05 |
| 06 | Inner Cylinder | 7.4Kg | 01-SP880-06 |
| 07 | Piston | 44.5Kg | 01-SP880-07 |
| 08 | Piston Case | 69.5Kg | 01-SP880-08 |
| 09 | Guided Sleeve | 6.1kg | 01-SP880-09 |
| 10 | Retainer Ring | 1.2kg | 01-SP880-10 |
| 11 | O-Ring | 0.01Kg | 01-SP880-11 |
| 12 | Drive Chuck | 19.3kg | 01-SP880-12 |
| 13 | Drill Bit | — | 01-SP880-13 |
ND85A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1354mm |
| Weight | 193Kg |
| Outer Diameter | 185mm |
| Connection Thread | API41/2"REG |
| Bit Shank | ND85A |
| Hole Range | 198-254mm |
| Work Pressure | 1.5-3.3Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.8Mpa / 2.4Mpa / 34m3/min / 25m3/min |

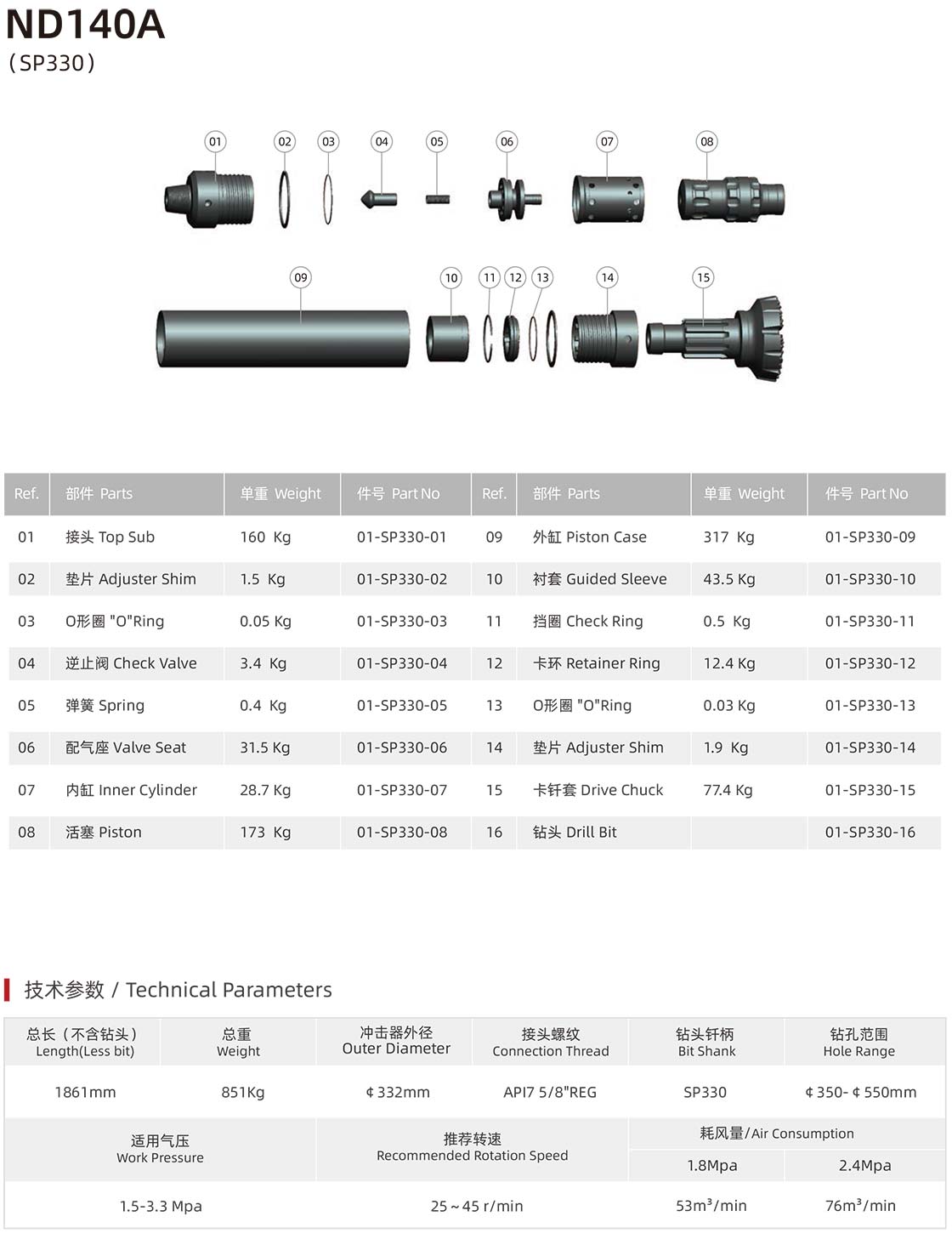

ND140A exploded view
ND140A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 160Kg | 01-SP330-01 |
| 02 | Adjuster Shim | 1.5Kg | 01-SP330-02 |
| 03 | OO-Ring | 0.05Kg | 01-SP330-03 |
| 04 | Check Valve | 3.4Kg | 01-SP330-04 |
| 05 | Spring | 0.4Kg | 01-SP330-05 |
| 06 | Valve Seat | 31.5Kg | 01-SP330-06 |
| 07 | Inner Cylinder | 28.7Kg | 01-SP330-07 |
| 08 | Piston | 173Kg | 01-SP330-08 |
| 09 | Piston Case | 317Kg | 01-SP330-09 |
| 10 | Guided Sleeve | 43.5Kg | 01-SP330-10 |
| 11 | Check Ring | 0.5Kg | 01-SP330-11 |
| 12 | Retainer Ring | 12.4Kg | 01-SP330-12 |
| 13 | OO-Ring | 0.03Kg | 01-SP330-13 |
| 14 | Adjuster Shim | 1.9Kg | 01-SP330-14 |
| 15 | Drive Chuck | 77.4Kg | 01-SP330-15 |
| 16 | Drill Bit | — | 01-SP330-16 |
ND140A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1861mm |
| Weight | 851Kg |
| Outer Diameter | 332mm |
| Connection Thread | API75/8"REG |
| Bit Shank | SP330 |
| Hole Range | 350-4550mm |
| Work Pressure | 1.5-3.3Mpa |
| Recommended Rotation Speed | 25~45r/min |
| Air Consumption | 2.4Mpa / 1.8Mpa / 53m/min / 76m/min |
