QL series DTH hammer
Share the required size, equipment and drilling conditions with your enquiry.
Product appearance and specifications are confirmed with your quotation.
Technical reference
Original manufacturer reference. Confirm the selected model and configuration before ordering.

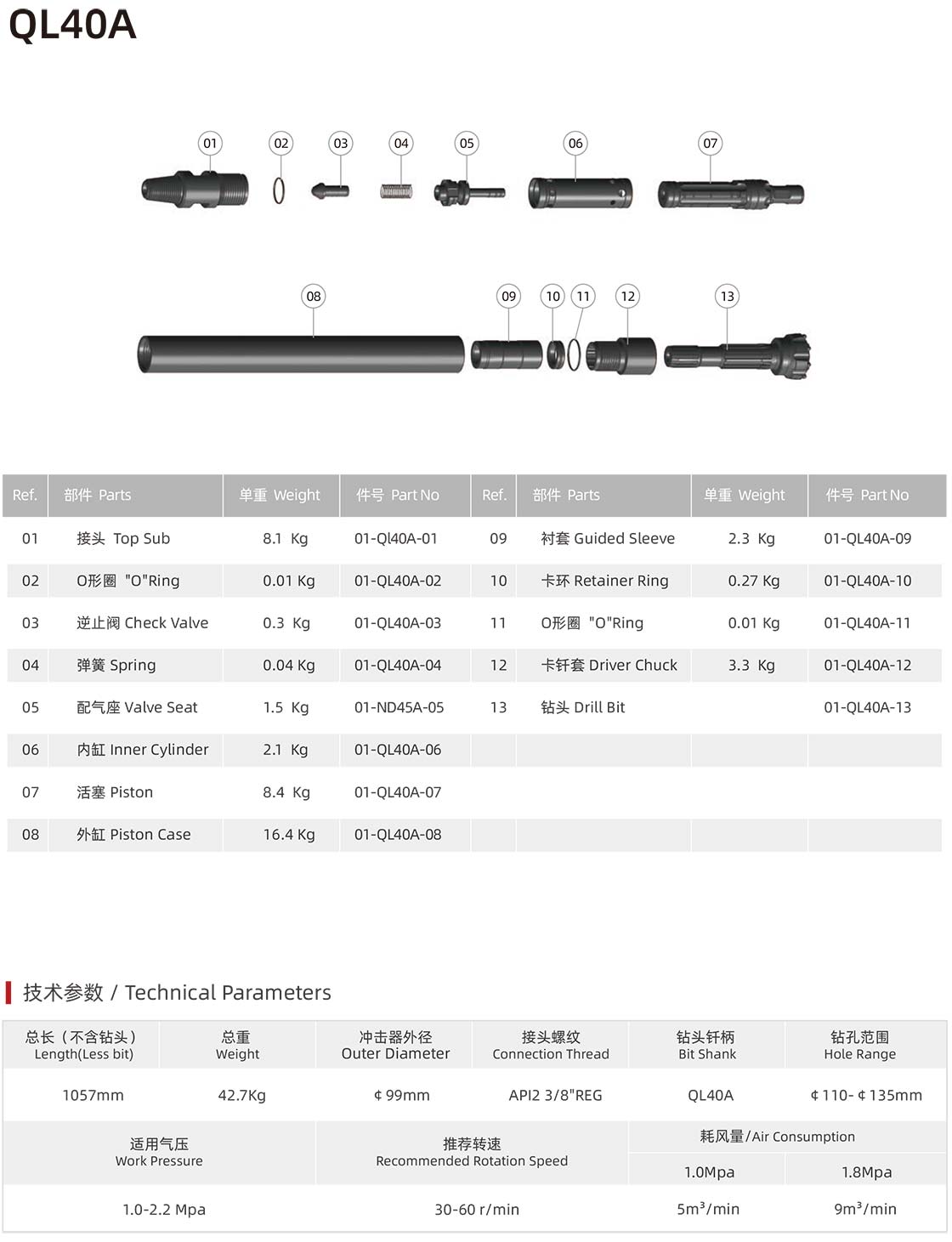

QL40A exploded view
QL40A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 8.1Kg | 01-Ql40A-01 |
| 02 | OORing | 0.01 Kg | 01-QL40A-02 |
| 03 | Check Valve | 0.3Kg | 01-QL40A-03 |
| 04 | Spring | 0.04Kg | 01-QL40A-04 |
| 05 | Valve Seat | 1.5Kg | 01-ND45A-05 |
| 06 | Inner Cylinder | 2.1Kg | 01-QL40A-06 |
| 07 | Piston | 8.4Kg | 01-QL40A-07 |
| 08 | Piston Case | 16.4Kg | 01-QL40A-08 |
| 09 | Guided Sleeve | 2.3Kg | 01-QL40A-09 |
| 10 | Retainer Ring | 0.27Kg | 01-QL40A-10 |
| 11 | O-Ring | 0.01Kg | 01-QL40A-11 |
| 12 | Driver Chuck | 3.3Kg | 01-QL40A-12 |
| 13 | Drill Bit | — | 01-QL40A-13 |
QL40A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1057mm |
| Weight | 42.7Kg |
| Outer Diameter | — |
| Connection Thread | AP123/8"REG |
| Bit Shank | QL40A |
| Hole Range | 110-135mm |
| Work Pressure | 1.0-2.2Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.8Mpa / 9m3/min / 5m/min |

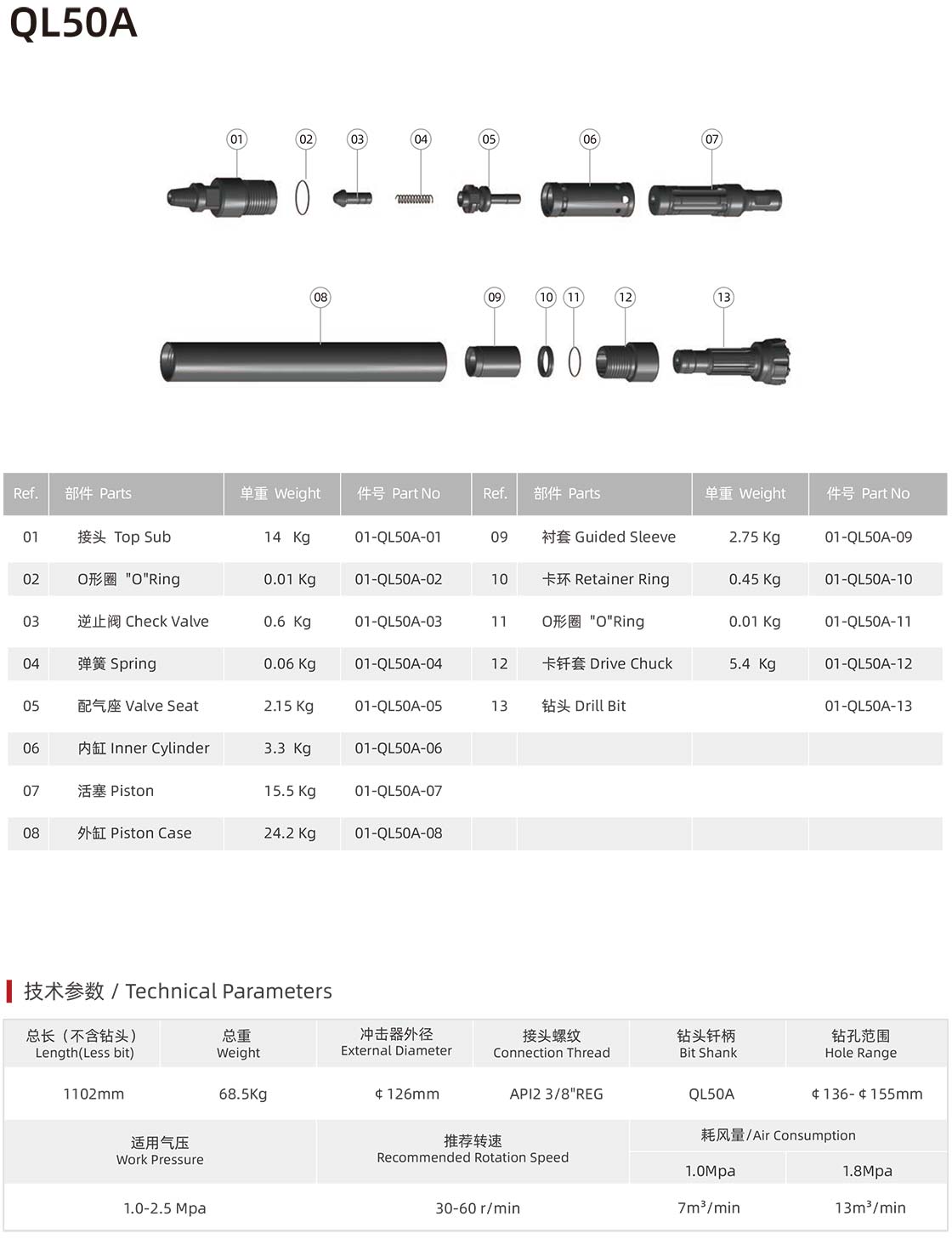

QL50A exploded view
QL50A parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 14Kg | 01-QL50A-01 |
| 02 | OORing | 0.01Kg | 01-QL50A-02 |
| 04 | Spring | 0.06Kg | 01-QL50A-04 |
| 05 | Valve Seat | 2.15Kg | 01-QL50A-05 |
| 06 | Inner Cylinder | 3.3Kg | 01-QL50A-06 |
| 07 | Piston | 15.5Kg | 01-QL50A-07 |
| 08 | Piston Case | 24.2Kg | 01-QL50A-08 |
| 09 | Guided Sleeve | 2.75Kg | 01-QL50A-09 |
| 10 | Retainer Ring | 0.45Kg | 01-QL50A-10 |
| 11 | O-Ring | 0.01Kg | 01-QL50A-11 |
| 12 | Drive Chuck | 5.4Kg | 01-QL50A-12 |
| 13 | Drill Bit | — | 01-QL50A-13 |
QL50A technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1102mm |
| Weight | 68.5Kg |
| Outer Diameter | 126mm |
| Connection Thread | AP123/8"REG |
| Bit Shank | QL50A |
| Hole Range | 136-155mm |
| Work Pressure | 1.0-2.5Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.8Mpa / 1.0Mpa / 13m3/min / 7m/min |

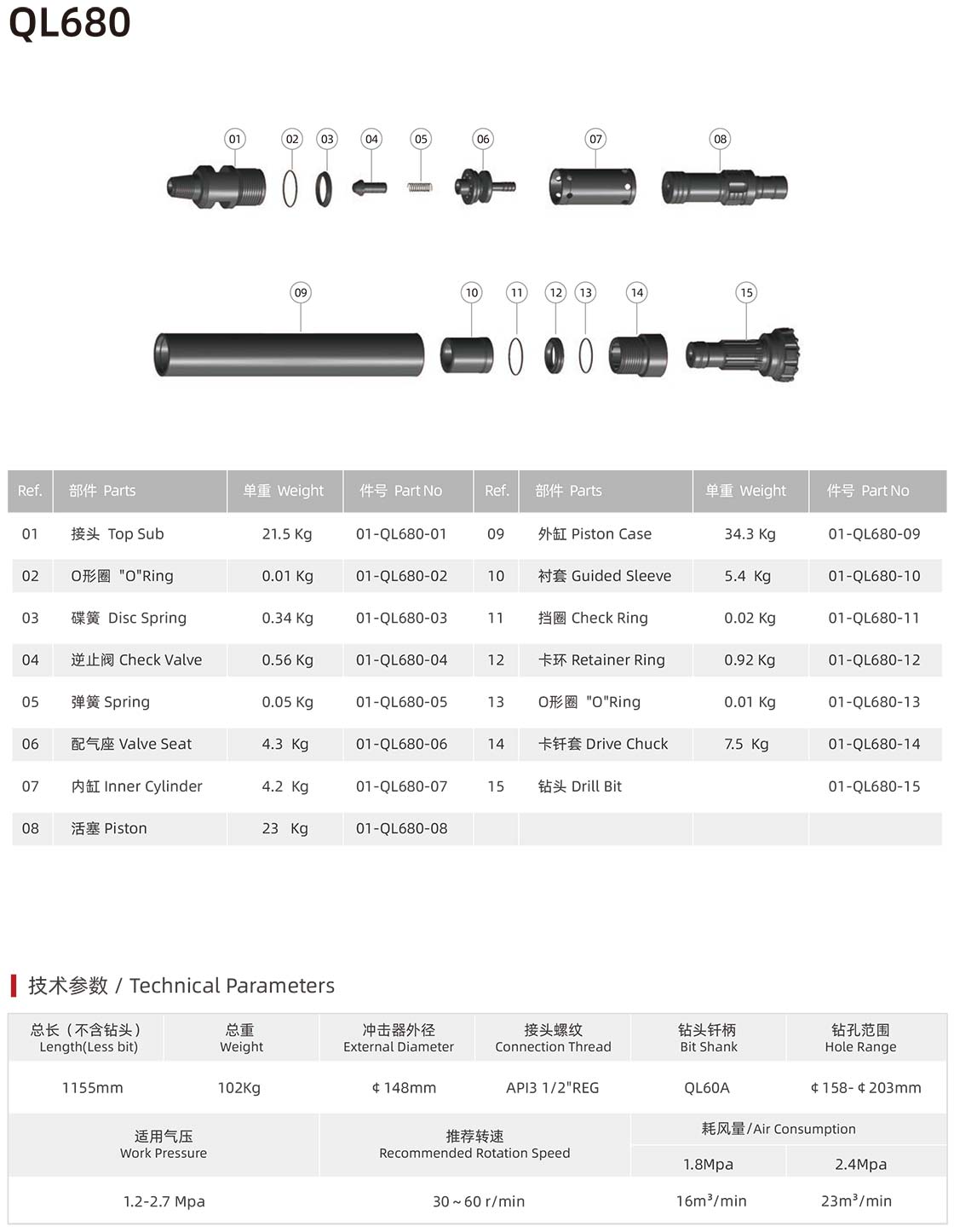

QL680 exploded view
QL680 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 21.5Kg | 01-QL680-01 |
| 02 | OORing | 0.01Kg | 01-QL680-02 |
| 03 | Disc Spring | 0.34Kg | 01-QL680-03 |
| 04 | Check Valve | 0.56Kg | 01-QL680-04 |
| 05 | Spring | 0.05Kg | 01-QL680-05 |
| 06 | Valve Seat | 3Kg 4.3 | 01-QL680-06 |
| 07 | Inner Cylinder | 4.2Kg | 01-QL680-07 |
| 08 | Piston | 23Kg | 01-QL680-08 |
| 09 | Piston Case | 34.3Kg | 01-QL680-09 |
| 10 | Guided Sleeve | 5.4Kg | 01-QL680-10 |
| 11 | Check Ring | 0.02Kg | 01-QL680-11 |
| 12 | Retainer Ring | 0.92Kg | 01-QL680-12 |
| 13 | O-Ring | 0.01Kg | 01-QL680-13 |
| 14 | Drive Chuck | 7.5Kg | 01-QL680-14 |
| 15 | Drill Bit | — | 01-QL680-15 |
QL680 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1155mm |
| Weight | 102Kg |
| Outer Diameter | 148mm |
| Connection Thread | API31/2"REG |
| Bit Shank | QL60A |
| Hole Range | 158-4203mm |
| Work Pressure | 1.2-2.7Mpa |
| Recommended Rotation Speed | 30~60r/min |
| Air Consumption | 1.8Mpa / 2.4Mpa / 16m/min / 23m/min |

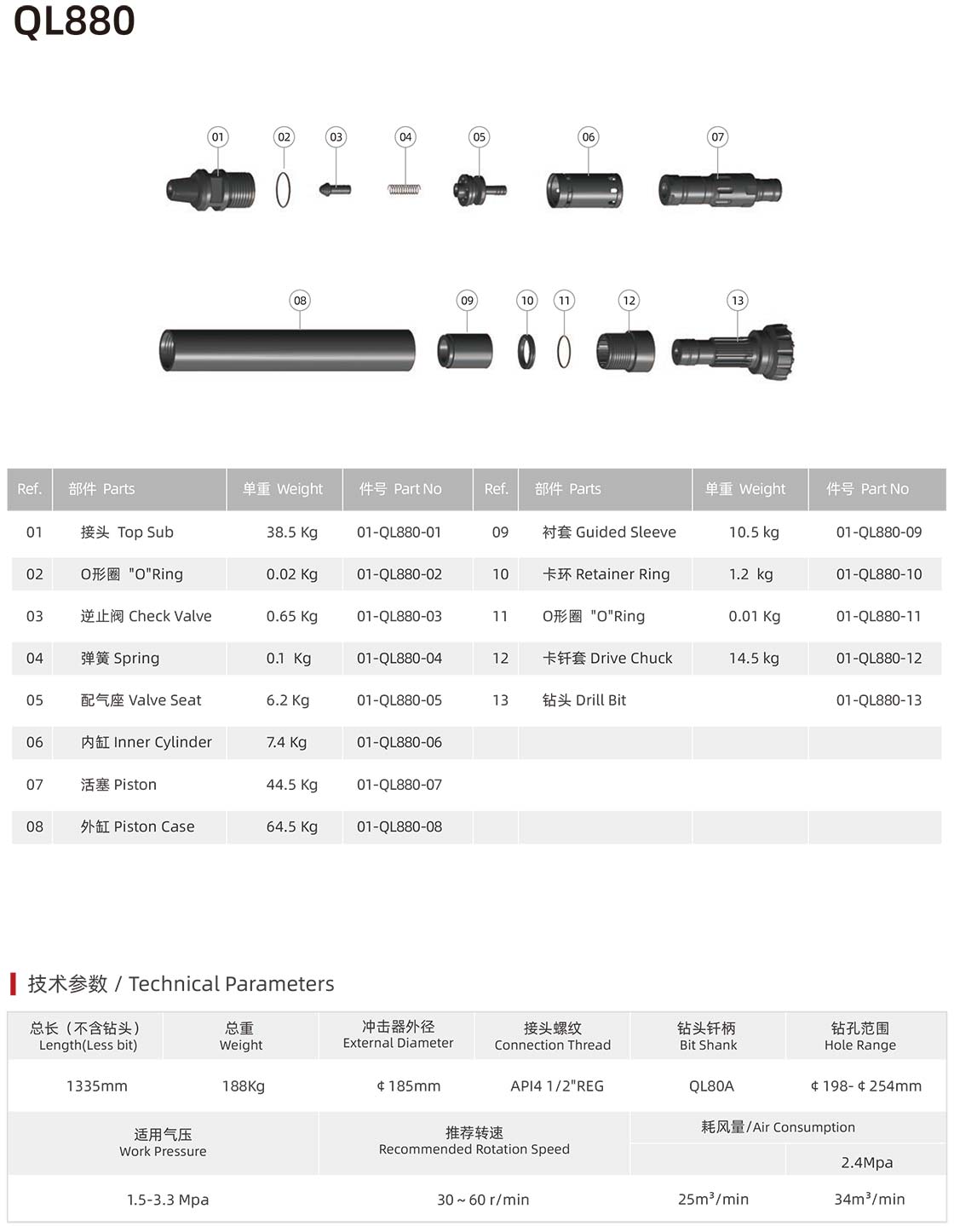

QL880 exploded view
QL880 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 38.5Kg | 01-QL880-01 |
| 02 | OO"Ring | 0.02Kg | 01-QL880-02 |
| 03 | Check Valve | 0.65Kg | 01-QL880-03 |
| 04 | Spring | 0.1Kg | 01-QL880-04 |
| 05 | Valve Seat | 6.2Kg | 01-QL880-05 |
| 06 | Inner Cylinder | 7.4Kg | 01-QL880-06 |
| 07 | Piston | 44.5Kg | 01-QL880-07 |
| 08 | Piston Case | 64.5Kg | 01-QL880-08 |
| 09 | Guided Sleeve | 10.5kg | 01-QL880-09 |
| 10 | Retainer Ring | 1.2kg | 01-QL880-10 |
| 11 | O-Ring | 0.01Kg | 01-QL880-11 |
| 12 | Drive Chuck | 14.5kg | 01-QL880-12 |
| 13 | Drill Bit | — | 01-QL880-13 |
QL880 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1335mm |
| Weight | 188Kg |
| Outer Diameter | 185mm |
| Connection Thread | API41/2"REG |
| Bit Shank | QL80A |
| Hole Range | 198-254mm |
| Work Pressure | 1.5-3.3Mpa |
| Recommended Rotation Speed | 30~60r/min |
| Air Consumption | 2.4Mpa / 25m/min / 34m3/min |

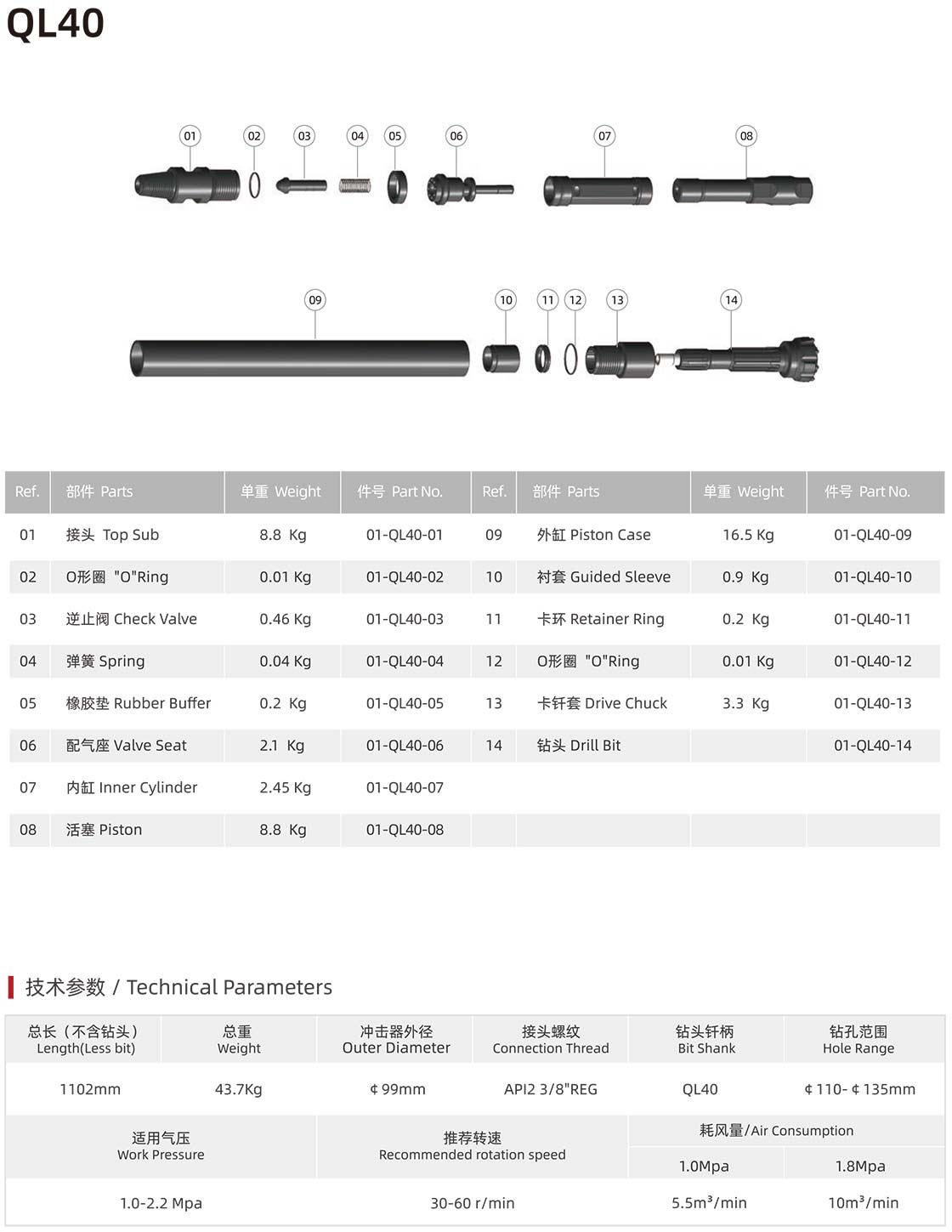

QL40 exploded view
QL40 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 8.8Kg | 01-QL40-01 |
| 02 | OORing | 0.01Kg | 01-QL40-02 |
| 03 | Check Valve | 0.46Kg | 01-QL40-03 |
| 04 | Spring | 0.04Kg | 01-QL40-04 |
| 05 | Rubber Buffer | 0.2Kg | 01-QL40-05 |
| 06 | Valve Seat | 2.1Kg | 01-QL40-06 |
| 07 | Inner Cylinder | 2.45Kg | 01-QL40-07 |
| 08 | Piston | 8.8Kg | 01-QL40-08 |
| 09 | Piston Case | 16.5Kg | 01-QL40-09 |
| 10 | Guided Sleeve | 0.9Kg | 01-QL40-10 |
| 11 | Retainer Ring | 0.2Kg | 01-QL40-11 |
| 12 | OO"Ring | 0.01Kg | 01-QL40-12 |
| 13 | Drive Chuck | 3.3Kg | 01-QL40-13 |
| 14 | Drill Bit | — | 01-QL40-14 |
QL40 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1102mm |
| Weight | 43.7Kg |
| Outer Diameter | 99mm |
| Connection Thread | API23/8"REG |
| Bit Shank | QL40 |
| Hole Range | 110-135mm |
| Work Pressure | 1.0-2.2Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.8Mpa / 10m/min / 5.5m/min |

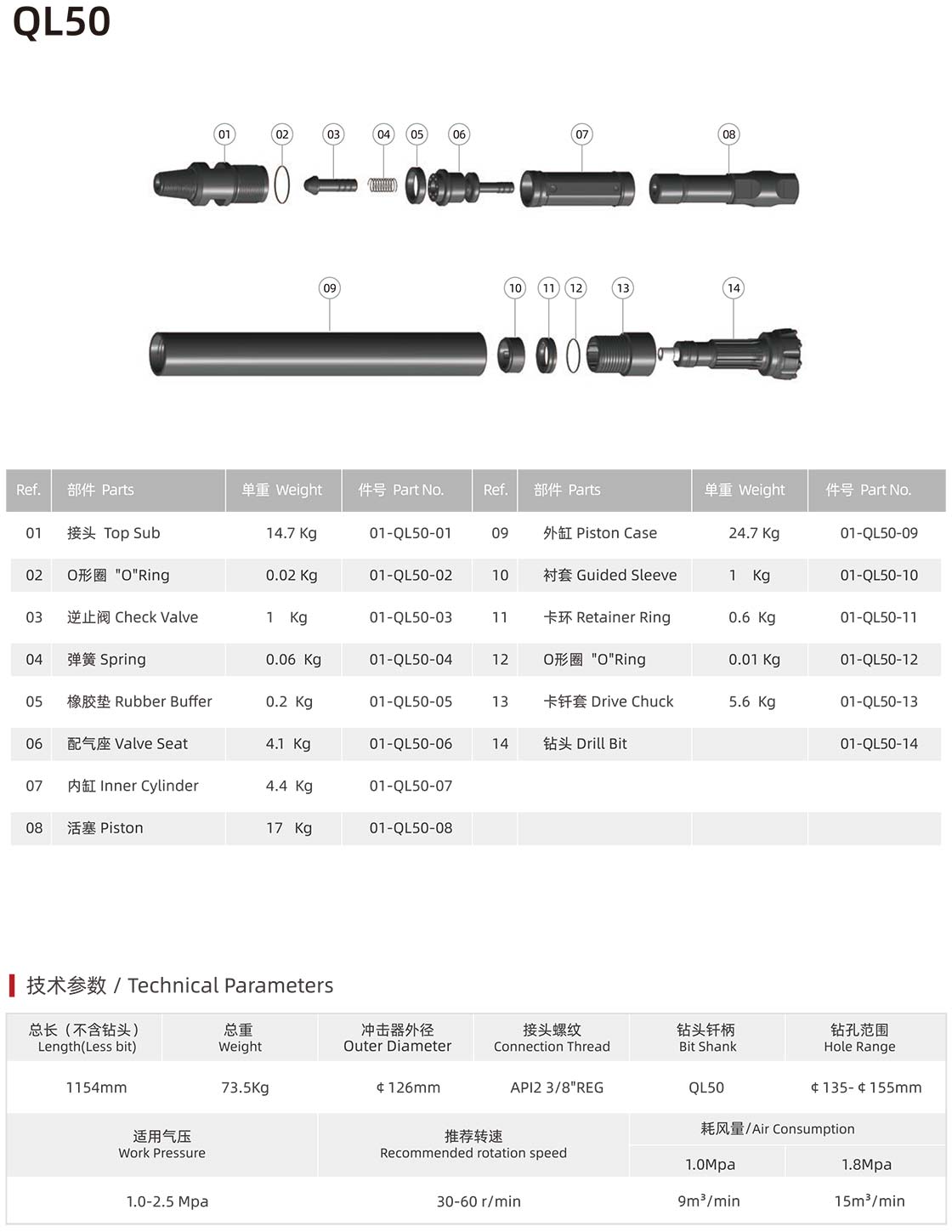

QL50 exploded view
QL50 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 14.7Kg | 01-QL50-01 |
| 02 | O-Ring | 0.02Kg | 01-QL50-02 |
| 03 | Check Valve | 1 Kg | 01-QL50-03 |
| 04 | Spring | 0.06 Kg | 01-QL50-04 |
| 05 | Rubber Buffer | 0.2Kg | 01-QL50-05 |
| 06 | Valve Seat | 4.1Kg | 01-QL50-06 |
| 07 | Inner Cylinder | 4.4Kg | 01-QL50-07 |
| 08 | Piston | 17Kg | 01-QL50-08 |
| 09 | Piston Case | 24.7Kg | 01-QL50-09 |
| 10 | Guided Sleeve | Kg | 01-QL50-10 |
| 11 | Retainer Ring | 0.6Kg | 01-QL50-11 |
| 12 | OO"Ring | 0.01Kg | 01-QL50-12 |
| 13 | Drive Chuck | 5.6Kg | 01-QL50-13 |
| 14 | Drill Bit | — | 01-QL50-14 |
QL50 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1154mm |
| Weight | 73.5Kg |
| Outer Diameter | 126mm |
| Connection Thread | API23/8"REG |
| Bit Shank | QL50 |
| Hole Range | 135-155mm |
| Work Pressure | 1.0-2.5Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.8Mpa / 9m3/min / 15m/min |

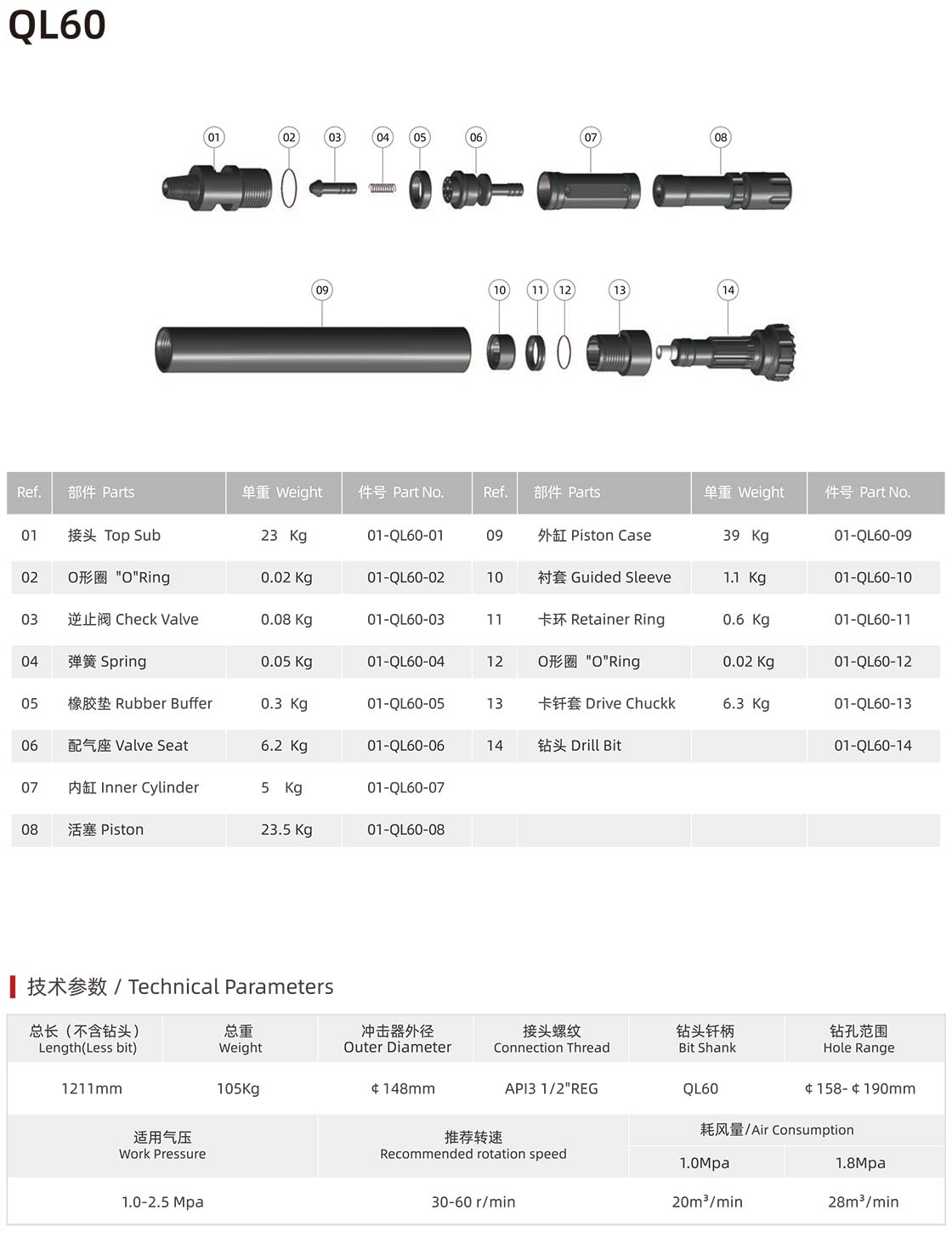

QL60 exploded view
QL60 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 23Kg | 01-QL60-01 |
| 02 | OO"Ring | 0.02Kg | 01-QL60-02 |
| 03 | Check Valve | 0.08Kg | 01-QL60-03 |
| 04 | Spring | 0.05Kg | 01-QL60-04 |
| 05 | Rubber Buffer | 0.3Kg | 01-QL60-05 |
| 06 | Valve Seat | 6.2Kg | 01-QL60-06 |
| 07 | Inner Cylinder | 5 Kg | 01-QL60-07 |
| 08 | Piston | 23.5Kg | 01-QL60-08 |
| 09 | Piston Case | 39Kg | 01-QL60-09 |
| 10 | Guided Sleeve | 1.1Kg | 01-QL60-10 |
| 11 | Retainer Ring | 0.6Kg | 01-QL60-11 |
| 12 | 0O"Ring | 0.02Kg | 01-QL60-12 |
| 13 | Drive Chuck | 6.3Kg | 01-QL60-13 |
| 14 | Drill Bit | — | 01-QL60-14 |
QL60 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1211mm |
| Weight | 105Kg |
| Outer Diameter | 148mm |
| Connection Thread | API31/2"REG |
| Bit Shank | QL60 |
| Hole Range | 158-190mm |
| Work Pressure | 1.0-2.5Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 1.0Mpa / 1.8Mpa / 20m3/min / 28m3/min |

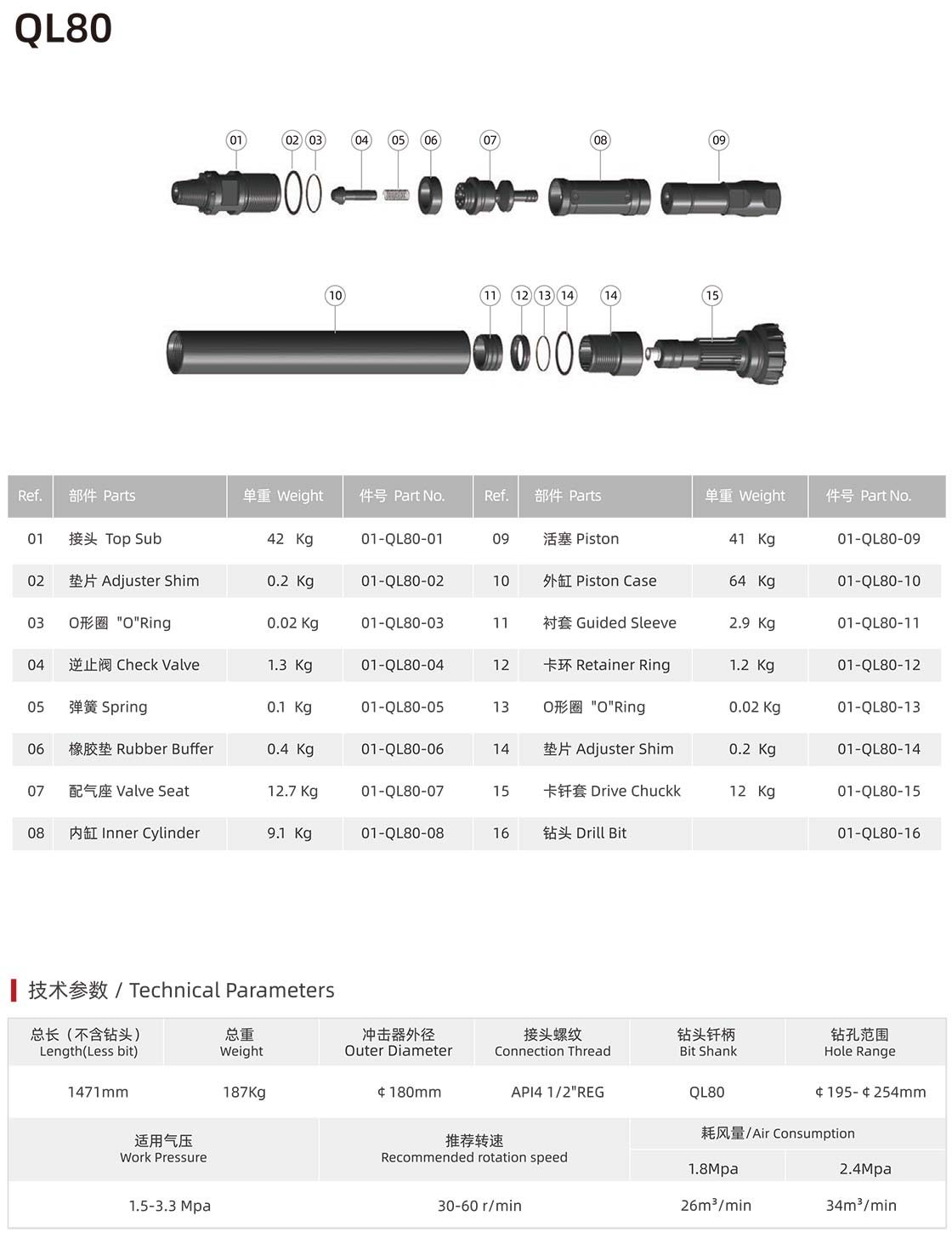

QL80 exploded view
QL80 parts
| Ref. | Part | Weight | Part No. |
|---|---|---|---|
| 01 | Top Sub | 42Kg | 01-QL80-01 |
| 02 | Adjuster Shim | 0.2Kg | 01-QL80-02 |
| 03 | O-Ring | 0.02Kg | 01-QL80-03 |
| 04 | Check Valve | 1.3Kg | 01-QL80-04 |
| 05 | Spring | 0.1Kg | 01-QL80-05 |
| 06 | Rubber Buffer | 0.4Kg | 01-QL80-06 |
| 07 | Valve Seat | 12.7Kg | 01-QL80-07 |
| 08 | Inner Cylinder | 9.1Kg | 01-QL80-08 |
| 09 | Piston | 41Kg | 01-QL80-09 |
| 10 | Piston Case | 64Kg | 01-QL80-10 |
| 11 | Guided Sleeve | 2.9Kg | 01-QL80-11 |
| 12 | Retainer Ring | 1.2Kg | 01-QL80-12 |
| 13 | O-Ring | 0.02Kg | 01-QL80-13 |
| 14 | Adjuster Shim | 0.2Kg | 01-QL80-14 |
| 15 | Drive Chuck | 12Kg | 01-QL80-15 |
| 16 | Drill Bit | — | 01-QL80-16 |
QL80 technical parameters
| Parameter | Value |
|---|---|
| Length (less bit) | 1471mm |
| Weight | 187Kg |
| Outer Diameter | 180mm |
| Connection Thread | API41/2"REG |
| Bit Shank | QL80 |
| Hole Range | 195-254mm |
| Work Pressure | 1.5-3.3Mpa |
| Recommended Rotation Speed | 30-60r/min |
| Air Consumption | 2.4Mpa / 1.8Mpa / 34m/min / 26m/min |
